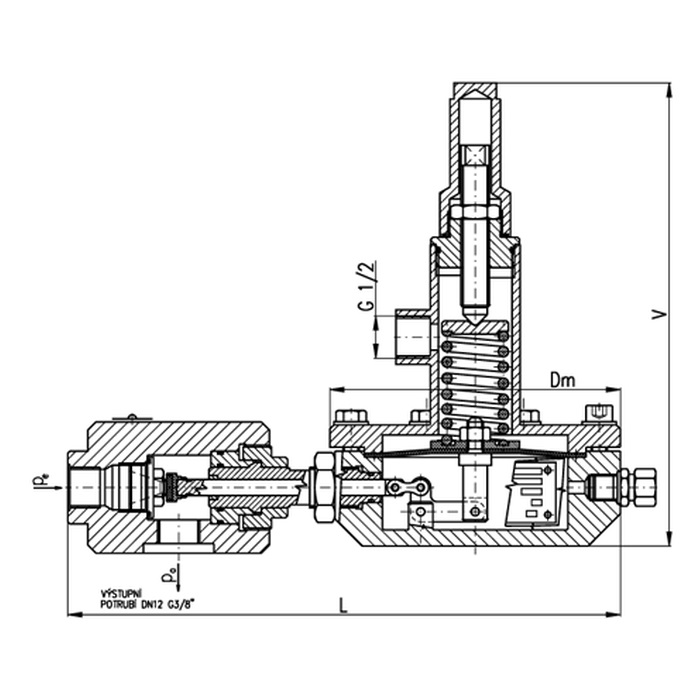

Pressure regulator – direct acting RT 217

Product description:
This regulator is a so called direct action regulator and is intended for a rough regulation of the gas pressure being supplied from a high pressure or a very high pressure gas distribution network directly to the consumer. The regulator is suitable for natural gas and all non-corrosive gaseous media. Required gas filtration: 5 µm.
Inlet pressure range pe = 1 to 4 MPa
Outlet pressure range pa = 0,1 to 0,4 MPa

Technical information

Type
PN
DN
Product lists
RT 217 440
40
25
Display PDF

Produced options

Connection
1 – Flanged
Control
7 – Self-acting
Material
4 – Forged carbon steel
